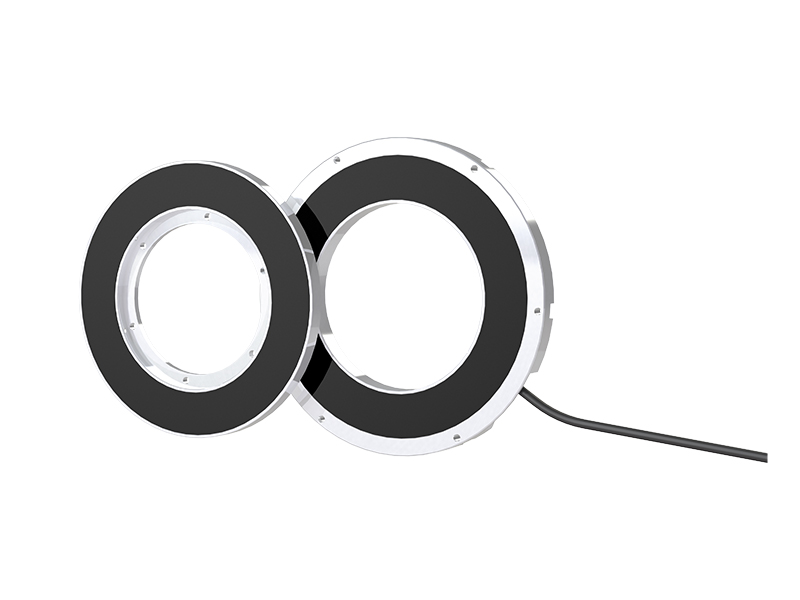

SEF141A encoder series
The outer diameter is 141mm, the through hole diameter is 70mm, and the thickness is 19mm.
Accuracy ±5″, ±3″ optional.
Repeatability ±1.5″.
Absolute and incremental angle encoders.
With LED indicator light to assist the installation function, the installation is convenient.
Accuracy ±5″, ±3″ optional.
Repeatability ±1.5″.
Absolute and incremental angle encoders.
With LED indicator light to assist the installation function, the installation is convenient.
INQUIRY NOW
SHARE
DESCRIPTION

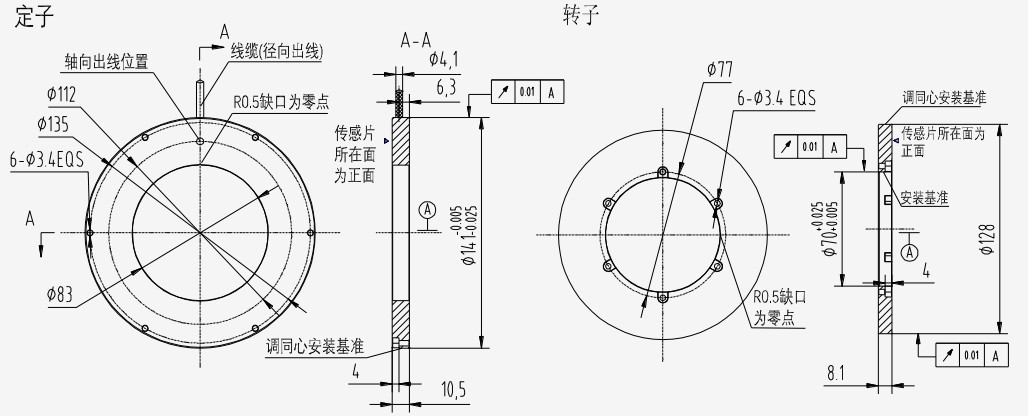

Dimensions

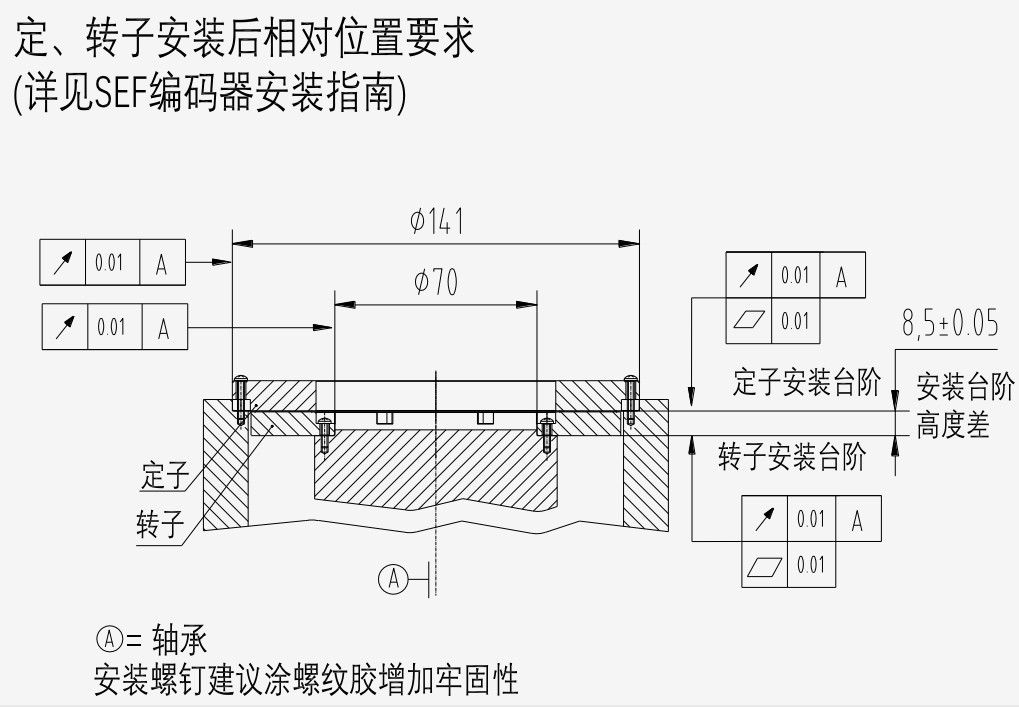

Mechanical installation requirements

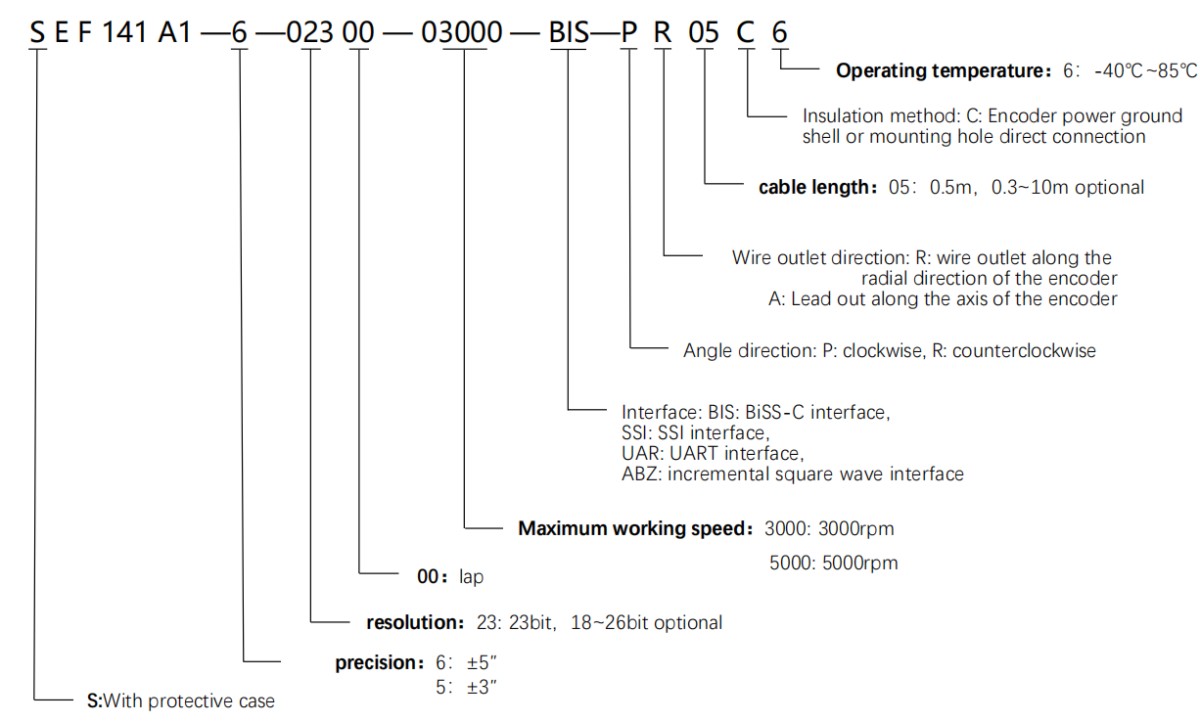

Description of order number
[1] ： Viewed from the time grid stator to the rotor, when the rotor rotates clockwise, the angle increases, that is, the clockwise direction; when the rotor rotates counterclockwise, the angle value increases, that is, the counterclockwise direction.
